Edelbrock Timing Set 7802

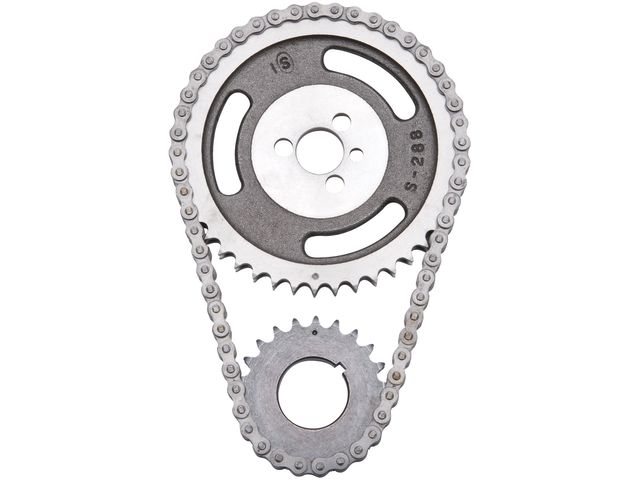

Edelbrock 7802 is a Performer-Link timing chain set with cam sprocket, crank sprocket and chain, listed for the 1974 Chevrolet Corvette 5.7L V8.

Part number: 7802
Condition: New
Our SKU: 7802

Add your vehicle above to check this part against it.

$35.95

In stock

Shipping options and cost shown at checkout
Returns accepted on unused parts, see our returns policy
Unsure about fit? Send your VIN before you order

Vehicle fitment

Year	Make	Model	Trim, body and engine
1974	Chevrolet	Corvette	5.7L V8

Rows are what the manufacturer lists for this part. If your trim or engine is missing, contact us with your VIN before ordering.

About this part

The Performer-Link set uses a solid bushing chain that Edelbrock says resists stretch, with a true bearing surface that rolls with the sprockets. The crank gear is stress proof steel and offers three keyway settings for accurate cam timing. It works with stock or Edelbrock camshafts. Edelbrock rates it for use up to 6500 rpm and aims it at racing and engine swaps.

Fitment notes

7802 is listed for the 1974 Chevrolet Corvette 5.7L V8. The note says it is not legal on pollution controlled vehicles and not for OEM hydraulic roller lifter camshaft engines. Check your local rules, the fitment table, or send your VIN.

Specifications and features

Includes cam sprocket, crank sprocket and chain
Solid bushing chain
3 keyway crank gear
Not for use above 6500 rpm
Not for OEM hydraulic roller cam engines

Installation notes

Disconnect the battery and drain coolant before pulling the timing cover. Set cylinder one at top dead center and use the straight up keyway unless your cam card calls for another. Fit a new cover gasket and seal.
