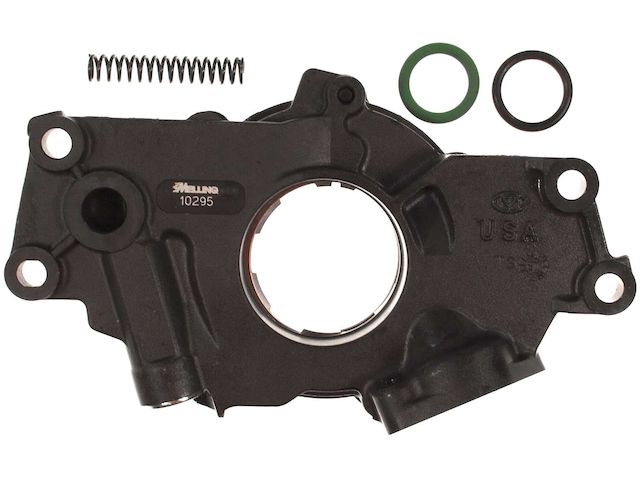

Melling Oil Pump 10295
- Part number
- 10295
- Condition
- New
- Our SKU
- 10295
Add your vehicle above to check this part against it.
$153.98
In stock
- Shipping options and cost shown at checkout
- Returns accepted on unused parts, see our returns policy
- Unsure about fit? Send your VIN before you order
Vehicle fitment
| Year | Make | Model | Trim, body and engine |
|---|---|---|---|
| 2000 | Chevrolet | Camaro | 5.7L V8 VIN: G |
| 1999–2006 | GMC | Sierra 1500 | VIN: T |
| 1999–2006 | GMC | Sierra 1500 | VIN: V |
| 2001–2004 | GMC | Sierra 1500 | VIN: U |
| 2002–2006 | GMC | Sierra 1500 | VIN: Z |
| 2005–2006 | GMC | Sierra 1500 | VIN: B |
| 2005–2006 | GMC | Sierra 1500 | VIN: N |
| 2007–2013 | GMC | Sierra 1500 | All |
| 2007–2009 | GMC | Sierra 1500 | VIN: C |
| 2007–2009 | GMC | Sierra 1500 | VIN: J |
| 2010–2013 | GMC | Sierra 1500 | VIN: A |
Rows are what the manufacturer lists for this part. If your trim or engine is missing, contact us with your VIN before ordering.
About this part
Melling oil pump, made to fit the 1999-2013 GMC Sierra 1500 and 1 other vehicle.
Condition: New. Part number 10295 from Melling.
Note: Performance; Stock Volume +10 PSI Higher Pressure Over Stock Pressure, High Performance Oil Pump; Hard Coat Anodized Aluminum Housing; Exclusive Rotor Design For Improved Strength; Phosphate Coated Cast Iron Cover; Includes Optional Standard And +25 PSI Pressure Springs; Threaded Pressure Relief Nut; Uses 7/8 Inch Stock Bolt-On Oil Pickup Tube; Includes O-Ring For Oil Pickup Tube
Features
- Includes optional +25 psi high pressure spring for the COPO Camaro engines.
- Stock Volume, 10 PSI increase in pressure over M295 oil pump.
- Uses 7/8" diameter standard bolt on screen
- Cast iron cover is CNC machined and phosphate coated.
- Cast aluminum housing is CNC machined and hardcoat anodized.
- The relief valve features a screw in valve plug.
- High pressure performance upgrade for M295.
- Includes o-rings for screen assembly.
Check the fitment table for trim and engine before ordering. If your vehicle is not listed, contact us with your VIN and we will confirm the fit.
Specifications
- Manufactured For
- GM LS
- Manufactured Pressure
- (Red) 70 PSI
- Optional Spring Pressure 2
- COPO 85 PSI
- Upgrade for Pump Number
- M295
- Optional Spring Pressure 1
- (Blue) 60 PSI
- Screen Information
- 7/8" Bolt On
- Bolts Included
- No
- Bushing Included
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Governor Spinner Included
- No
- Hardware Included
- No
- Inlet Size (in)
- 0.875
- Inlet Size (mm)
- 22.00
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Pump Cover Included
- Yes
- Spacer Included
- No
- Pickup Screen Included
- No
- Timing Cover Included
- No
- Washers Included
- No
- Grade Type
- Performance
- Gasket Or Seal Included
- Yes
- Housing Material
- Cast Aluminum
- Rotor Material
- Steel
- Adjustable Bypass Pressure
- Yes
- Alternate Pressure Springs Included
- Yes
- Oil Pump Pressure Type
- High Pressure
- Oil Pump Volume Type
- Standard Volume
- Housing Finish
- Anodized
- Additional Volume Over Stock Percentage
- 0%
