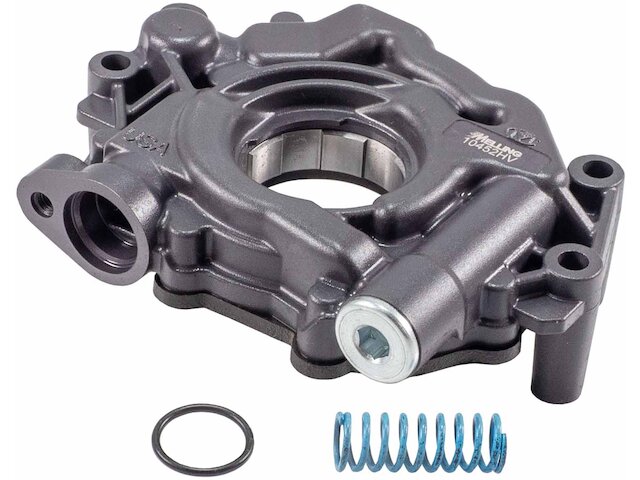

Melling Oil Pump 10452HV
- Part number
- 10452HV
- Condition
- New
- Our SKU
- 10452HV
Add your vehicle above to check this part against it.
$209.97
In stock
- Shipping options and cost shown at checkout
- Returns accepted on unused parts, see our returns policy
- Unsure about fit? Send your VIN before you order
Vehicle fitment
| Year | Make | Model | Trim, body and engine |
|---|---|---|---|
| 2011–2023 | Ram | 1500 | VIN: T |
Rows are what the manufacturer lists for this part. If your trim or engine is missing, contact us with your VIN before ordering.
About this part
Melling oil pump, made to fit the 2011-2023 Ram 1500.
Condition: New. Part number 10452HV from Melling.
Note: Performance; High Volume High Performance Oil Pump; Hard Coat Anodized Aluminum Housing; Phosphate Coated Cast Iron Cover; High Pressure (+12 PSI Over Stock M452, +10 PSI Over Stock M462) Spring Installed; Includes Optional +10 PSI Over Stock M452 / Standard Pressure Stock M462 Spring; Threaded Pressure Relief Nut; Uses 1.0 Inch Diameter Stock Bolt-On Oil Pickup Tube; Includes O-Ring For Oil Pickup Tube Assembly
Features
- Includes O-Ring For Oil Pickup Tube Assembly
- Hard coat anodized body with a cast iron phoshate coated cover.
- Threaded Pressure Relief Nut
- Uses standard 7/8" diameter bolt on screen.
- High volume performance upgrade for the M452HV.
- 12% increase in volume over M452
- Uses 1.0 Inch Diameter Stock Bolt-On Oil Pickup Tube
- Cast Aluminum Housing
- The relief valve features a screw in valve plug.
- High Pressure (+10 PSI) Spring Installed, Comes With An Optional Standard Pressure Spring
Check the fitment table for trim and engine before ordering. If your vehicle is not listed, contact us with your VIN and we will confirm the fit.
Specifications
- Manufactured For
- Chrysler HEMI
- Manufactured Pressure
- (Green) 75 PSI
- Upgrade for Pump Number
- M452, M462
- Optional Spring Pressure 1
- (Blue) 65 PSI
- Screen Information
- 1.00" Bolt On
- Bolts Included
- No
- Bushing Included
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Governor Spinner Included
- No
- Hardware Included
- No
- Inlet Size (in)
- 1.200
- Inlet Size (mm)
- 30.50
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Pump Cover Included
- Yes
- Spacer Included
- No
- Pickup Screen Included
- No
- Timing Cover Included
- No
- Washers Included
- No
- Housing Finish
- Anodized
- Grade Type
- Performance
- Gasket Or Seal Included
- No
- Housing Material
- Cast Aluminum
- Rotor Material
- Steel
- Adjustable Bypass Pressure
- Yes
- Alternate Pressure Springs Included
- Yes
- Anti-Cavitation
- No
- Adjustable Pickup Screen
- No
- Drive Sprocket Included
- Yes
- Oil Pump Pressure Type
- High Pressure
- Oil Pump Volume Type
- High Volume
- Additional Volume Over Stock Percentage
- 12%
