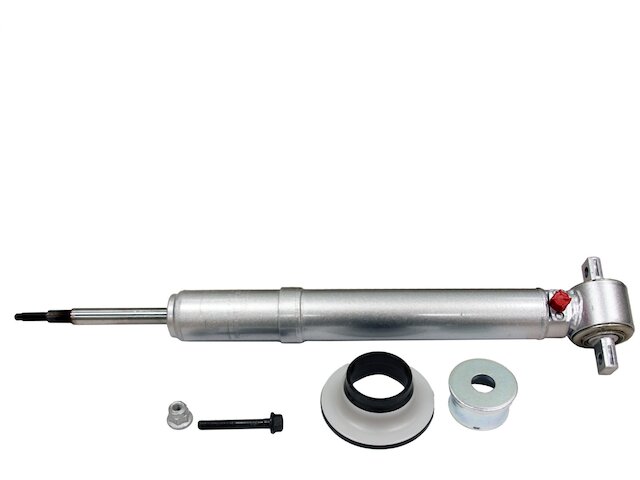

Rancho Front Strut Assembly RS999786

Rancho RS999786 is an RS9000XL front strut assembly for the 2014 Tahoe LS 5.3L with a 4 inch lift, used with the Rancho RS6582 or RS6582B system.

Part number: RS999786
Position: Front
Condition: New
Our SKU: RS999786

Add your vehicle above to check this part against it.

$210.50

In stock

Shipping options and cost shown at checkout
Returns accepted on unused parts, see our returns policy
Unsure about fit? Send your VIN before you order

Vehicle fitment

Year	Make	Model	Trim, body and engine
2014	Chevrolet	Tahoe	LS, 5.3L V8

Rows are what the manufacturer lists for this part. If your trim or engine is missing, contact us with your VIN before ordering.

About this part

The Rancho RS999786 is a nitrogen gas charged RS9000XL strut assembly. Rancho says it works like 9 shocks in 1, letting you set the damping for different conditions. It measures 22.510 inches extended and 18.840 inches collapsed, with a 3.670 inch stroke, and has a liquid metallic finish. Because it is gas charged, the rod extends on its own. Rancho lists a 2.75 inch body and 18mm rod on select applications.

Fitment notes

Listed for the 2014 Chevrolet Tahoe LS with the 5.3L V8, set up with a 4 inch lift using Rancho system RS6582 or RS6582B. It is not for Z55 electronic suspension or Z95 Magnetic Ride Control. A stock height Tahoe is not the target here. Check the table or send your VIN.

Specifications and features

Series: RS9000XL, premium grade
Extended 22.510 in., collapsed 18.840 in.
Stroke: 3.670 in.
For 4 in. lift with Rancho RS6582/RS6582B
Not for Z55 or Z95 suspension
Nitrogen gas charged

Installation notes

Install as part of the matching Rancho lift system and follow its instructions. Use jack stands, check brake line and ABS wire slack at full droop, and align the vehicle after the lift is installed.
